The features of grid ceiling
■ Shaped: Square
■ Material: Grade AA aluminum alloy
■ Thickness: 0.5mm〜0.8mm
■ Workmanship: Compression moulding forming
■ Common standards: 50X50，75X75, 100X100，150X150，200X200，width: 10mm and 15mm, the length: 2000mm
■ Surface: Akzo Nobel powder coatings, and the thickness is 0.06〜0.1 mm. More standard colors to you choice
■ User type:Special size, punch kind, color of surface and custom-made
■ Installation system: Grid fitting system and combination grid system

Grid ceiling series installation instruction
1. Suspend the iron wire.
2. Assemble the grille ceiling in advance on the floor.
3. Lift up the ceiling assembled (thread the iron wire to the hole of main carrier)
4. Proceed to level adjustment after paving all ceiling tiling squares.

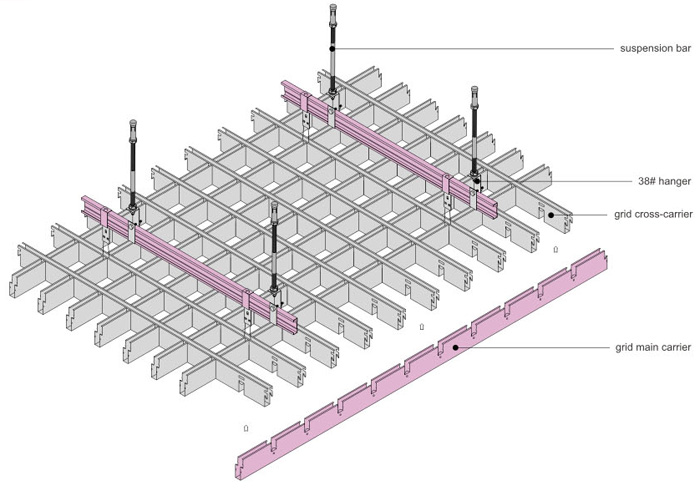

The drawing of installation of grid ceiling
