The features of C-shaped closed strip ceiling
■ Shape: Rectangle
■ Material: Grade AA aluminum alloy
■Thickness: 0.8mm~1.2mm
■ Kinds of punch: More size and pattern to choice
■ Workmanship: Compression moulding forming or continuous rolling press forming
■ Common specifications: C-shaped (100,150,200,300)，that is equal to or less than 6000mm in length
■ Sound absorption: Germany soundtex, MRC0.65〜0.8
■ Surface: Akzo Nobel powder coating, and the thinkness of coatings is 0.06〜0.1 mm
■ User type: Special size, kinds of punch, surface colors and assembly of installation, that could be to orders

■ Size:

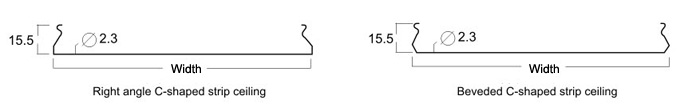

Beveled 75mm、100mm、150mm、200mm、300mm
Right Angle 50mm、100mm、150mm、200mm、300mm

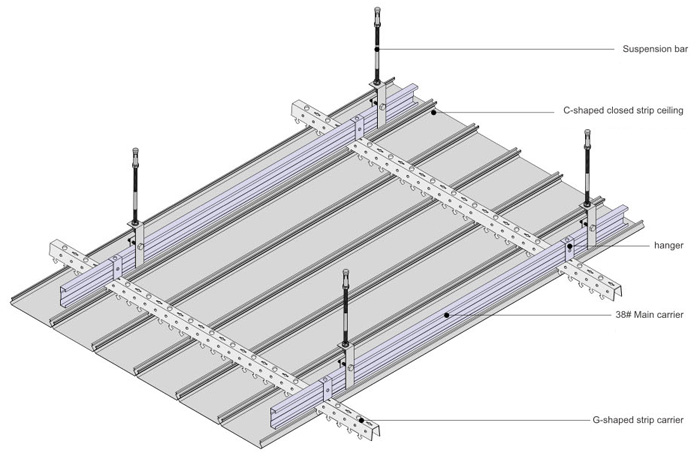

The drawing of installation of C-shaped closed strip ceiling
